3200 AquaGem
DS is a family-owned business packed with 30 years experience is designing and engineering boilers. This hydronic system requires no electricity to heat water for floor heat, baseboard, freestanding radiators, heat pumps, or domestic water. It works well with new or existing oil or electric boilers. Our boilers circulate water in the front to prevent cracking. Each unit is pressure tested to 120 PSI and has a powerful heat exchanger for maximum efficiency. Constructed from 1/4” steel, this Aqua-Gem boiler easily maintains water temperature and features a large capacity ash pan. All our boilers are designed with the best cast iron grate system and built to last.
Specifications
3200 AQUAGEM
The complete specifications are listed below, and can help you understand this appliance's designed purpose and capability.
Heating Sq. Ft.
Efficiency
BTU
Firebox(WxD)
Volume
Log Size
Overall (WxDxH)
Load door (WxH)
Ash door (WxH)
Top exhaust
Rear exhaust
Water cap.
Inlet / outlet
U.L. tested
Weight
Insulated jacket
Warranty
2000-3500
78%
160,000
19”x24”x25"
7.0 cu. ft.
22”
26”x30”x53.5”
14” x 14.5”
16.5” x 9”
8”
Optional 42.5" C.F.
40 Gallons
2"
Yes*
1050 lbs.
Optional
5-year limited
1-year controls
Features
3200 AQUAGEM
A list of some of the great features of this appliance.
- Made in USA
- Hand Crafted
- Built Tough
- Built to Last
- Burns coal
- UL Safety Tested
- Secondary combustion system
- Built from heavy steel

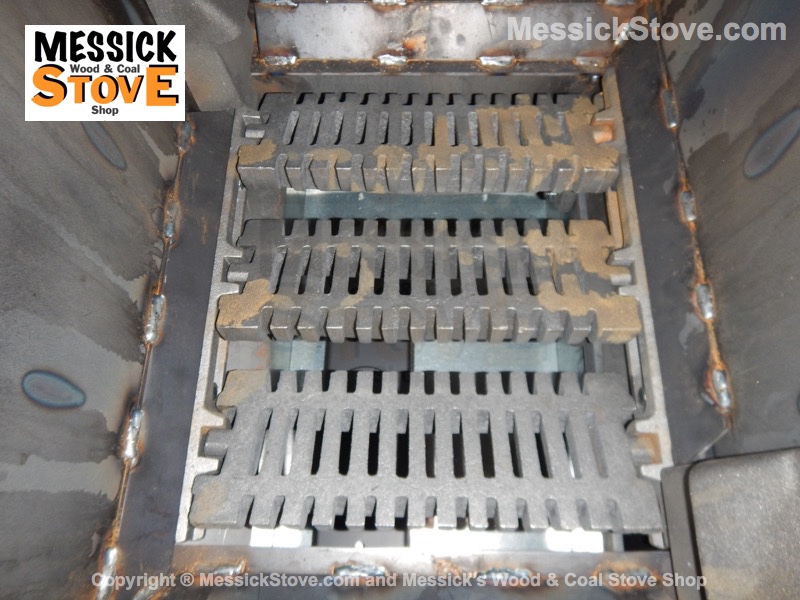

- Superior cast iron Shaker grates
- 1/2" NPT fitting for temperature/pressure gauge
- Easy Operation
- Easy Maintenance
- Priced Right
- 5 Year Warranty
- Multiple 3/4" NPT fittings
- Cast iron airtight doors
- Optional forced draft
- Optional domestic water coil
- Large 6" high ash pan
- Exterior Shaker handles
- Minimal dust
Options
3200 AQUAGEM
- Rear Exhaust
- Insulated Jacket Kit
- Insulated Jacket Kit (Rear Exhaust)
- Forced Air Draft Kit
- 4 Gallons Per Minute Flange Coil
- 5 Gallons Per Minute Flange Coil
Clearances From Combustibles
3200 AQUAGEM
This appliance has the following requires when installing.
Back
Front
Flue/Stove Pipe
Ceiling
16”
48”
18”
36”
All units require a class “A” all fuel chimney installation that must conform to local and state codes. *Safety tested and labeled to U.L. Standards by Guardian Fire testing, to U.L. #1482, U.L. #5627, U.L. #391, CSA #8366
Domestic Water Coil
3200 AQUAGEM
A 4 or 5 gallon-per-minute optional domestic water coil can heat your hot water or work in conjunction with your existing domestic water system. You can save up to $100.00 per month over LP gas, electric or heating fuel.
Circulates Air and Puts Out More Heat
3200 AQUAGEM

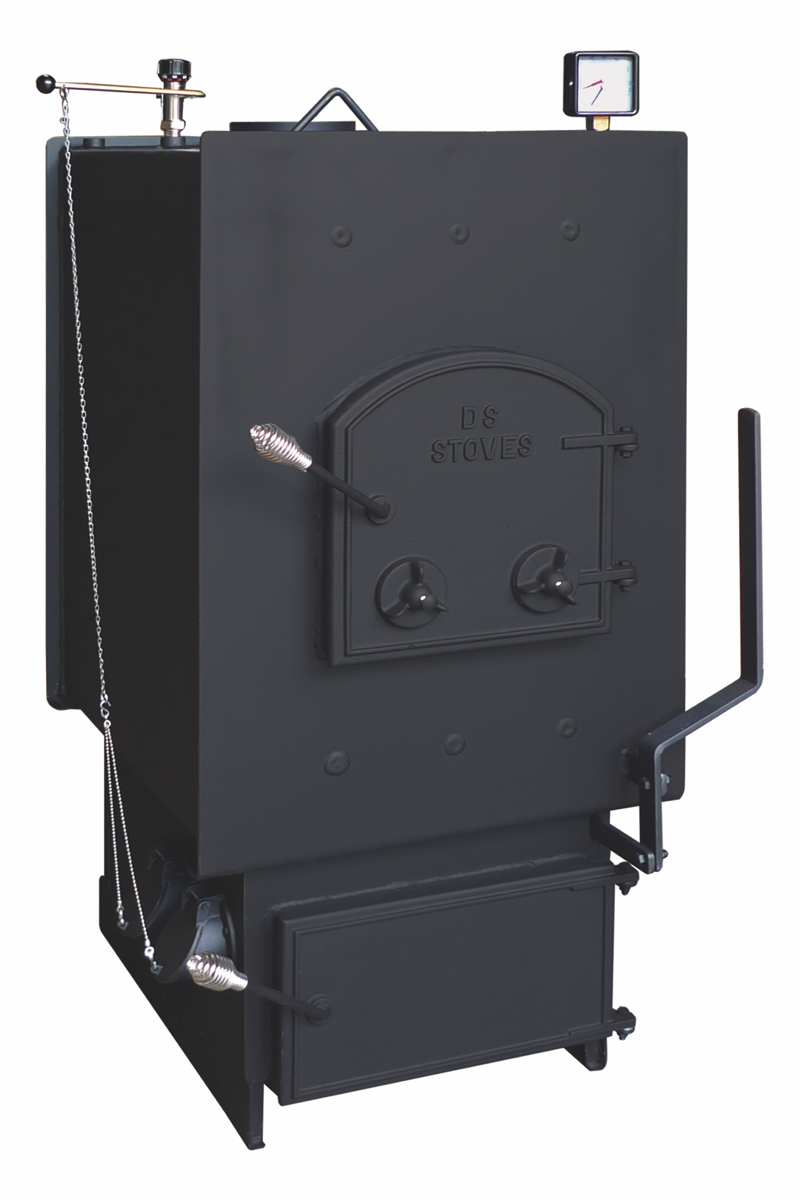

Boiler Only.
3200 AQUAGEM

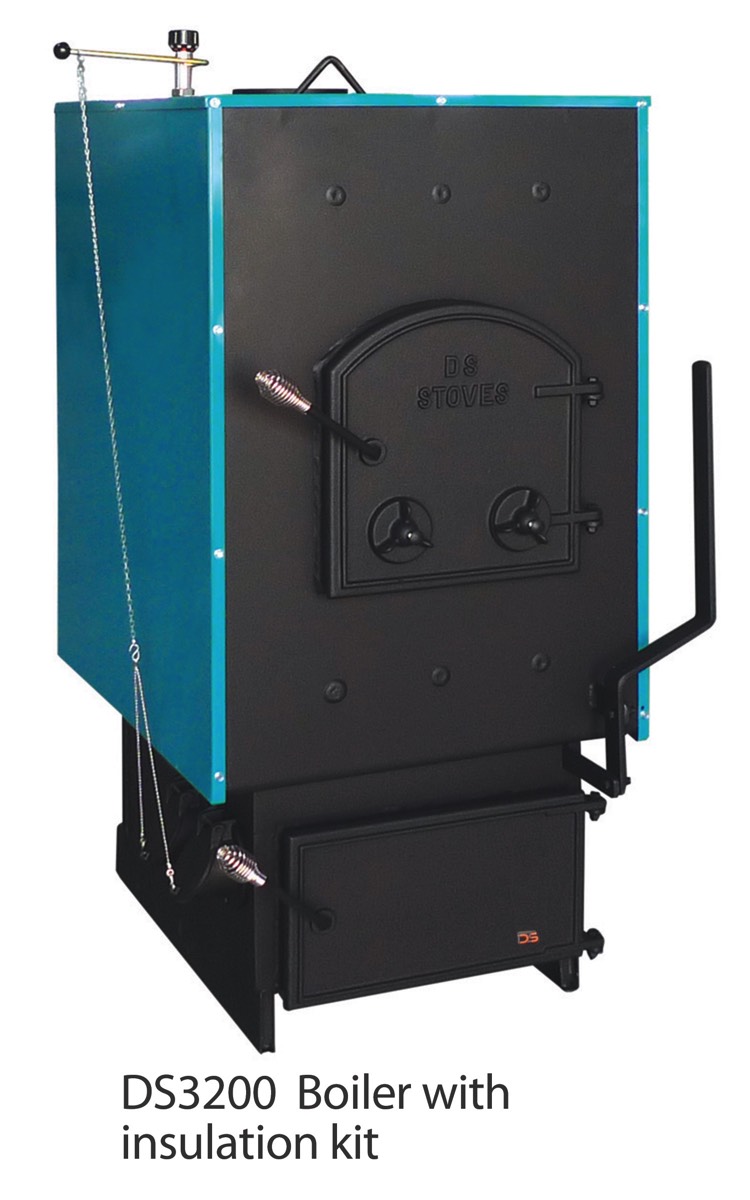

Shown with Optional Insulation Kit.
Photos
3200 AQUAGEM
