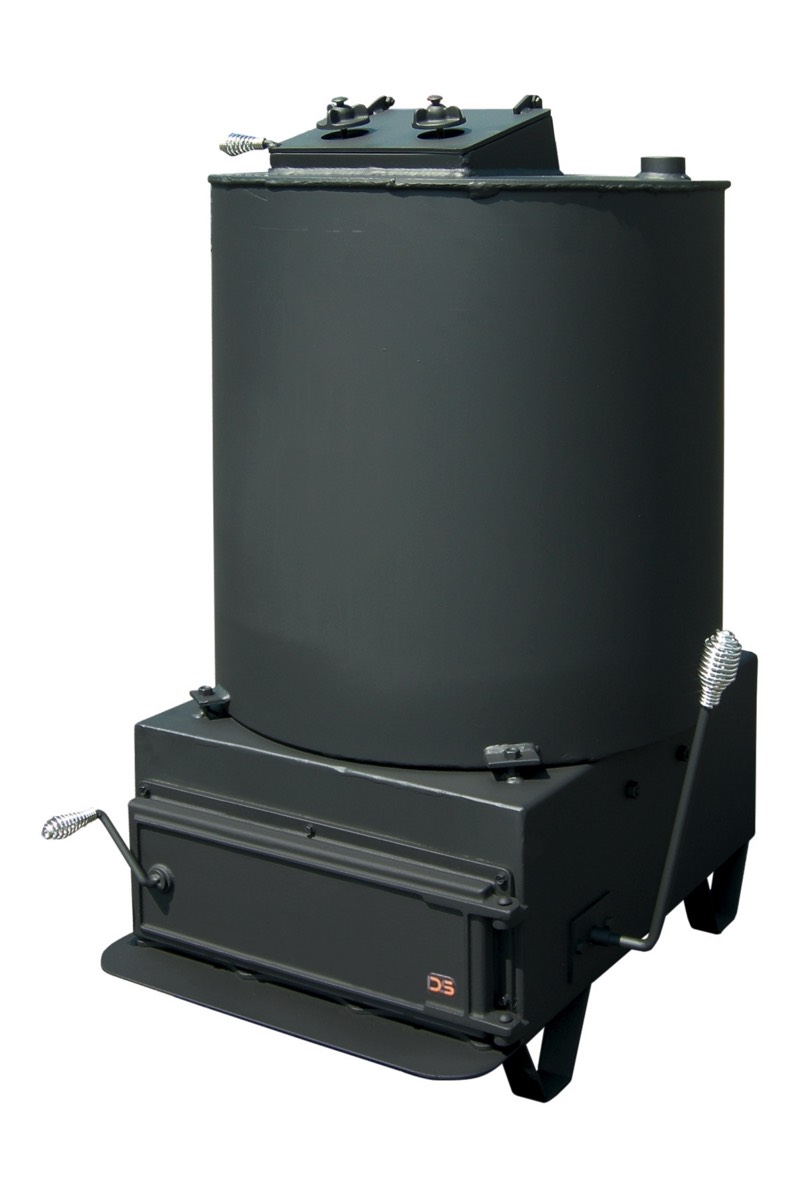

9158 Coal Boiler
COAL
DS Stoves engineers and fabricates specialty boilers ranging from domestic and home heating to farm related needs. For green houses, veal growers, hog barns or milk houses, burning wood or coal, we have the boiler you need. If you can imagine it, we can build it.
Specifications
9158 COAL BOILER
The complete specifications are listed below, and can help you understand this appliance's designed purpose and capability.
Fuel
Heating Sq. Ft.
Efficiency
BTU
Firebox(WxD)
Volume
Log Size
Overall (WxDxH)
Load door (WxH)
Ash door (WxH)
Top exhaust
Rear exhaust
Water cap.
Inlet / outlet
U.L. tested
Weight
Warranty
Heating Sq. Ft.
Efficiency
BTU
Firebox(WxD)
Volume
Log Size
Overall (WxDxH)
Load door (WxH)
Ash door (WxH)
Top exhaust
Rear exhaust
Water cap.
Inlet / outlet
U.L. tested
Weight
Warranty
Coal
1000-2400
78%
105,000
18"dia.x24"h
5.0 cu. ft.
16”
29.75”x32”x41.5”
9.5” x 6.5”
16.5” x 5.5”
6”
N/A
32 Gallons
2
No
445 lbs.
5-year limited
1-year controls
1000-2400
78%
105,000
18"dia.x24"h
5.0 cu. ft.
16”
29.75”x32”x41.5”
9.5” x 6.5”
16.5” x 5.5”
6”
N/A
32 Gallons
2
No
445 lbs.
5-year limited
1-year controls
Features
9158 COAL BOILER
A list of some of the great features of this appliance.
- Made in USA
- Hand Crafted
- Built Tough
- Built to Last
- Burns coal
- Designed to heat domestic water or smaller homes
- Requires only 30 lbs. of coal per day
- Tank built from 1/4" plate steel
- Draft regulated with a Samson control
- Easy Operation
- Easy Maintenance
- Priced Right
- 5 Year Warranty
- Superior cast iron Shaker grates
- Cast iron airtight doors
- Ash pan
- Exterior Shaker handles
- Minimal dust
Clearances From Combustibles
9158 COAL BOILER
This appliance has the following requires when installing.
Side
Back
Front
Flue/Stove Pipe
Ceiling
Back
Front
Flue/Stove Pipe
Ceiling
18”
18”
36”
18”
36”
18”
36”
18”
36”
All units require a class “A” all fuel chimney installation that must conform to local and state codes. NOT UL SAFETY TESTED OR LISTED.
9158 COAL BOILER

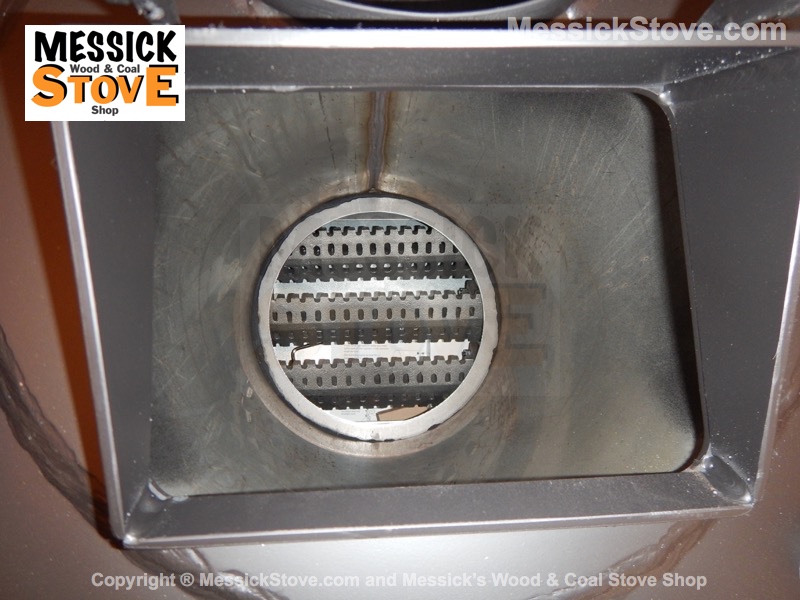

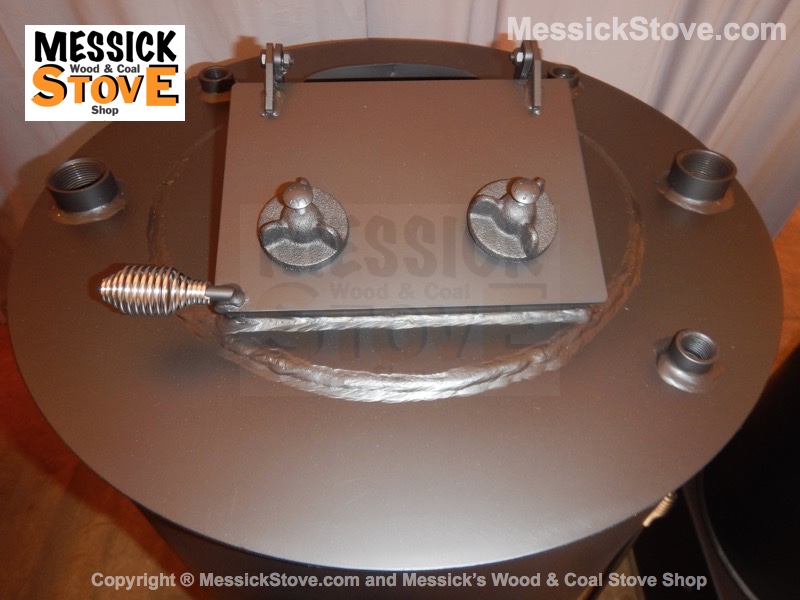

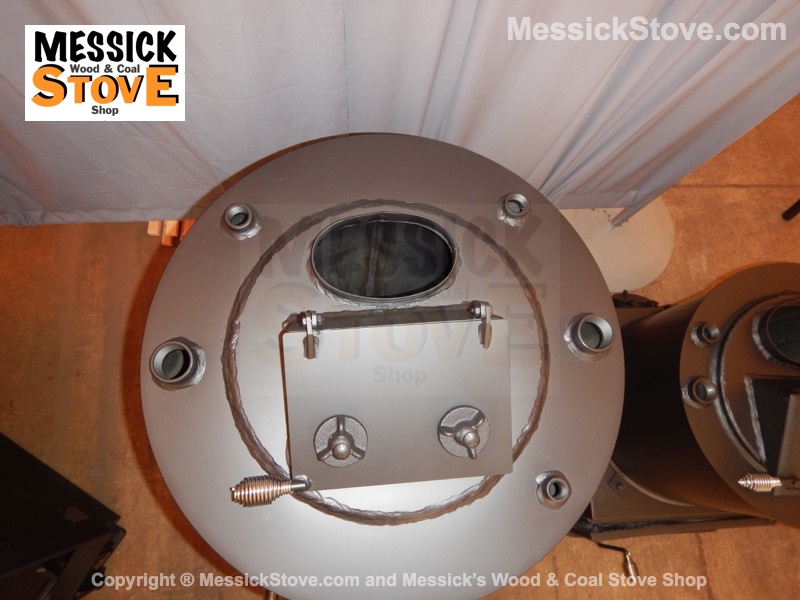

Photos
9158 COAL BOILER
