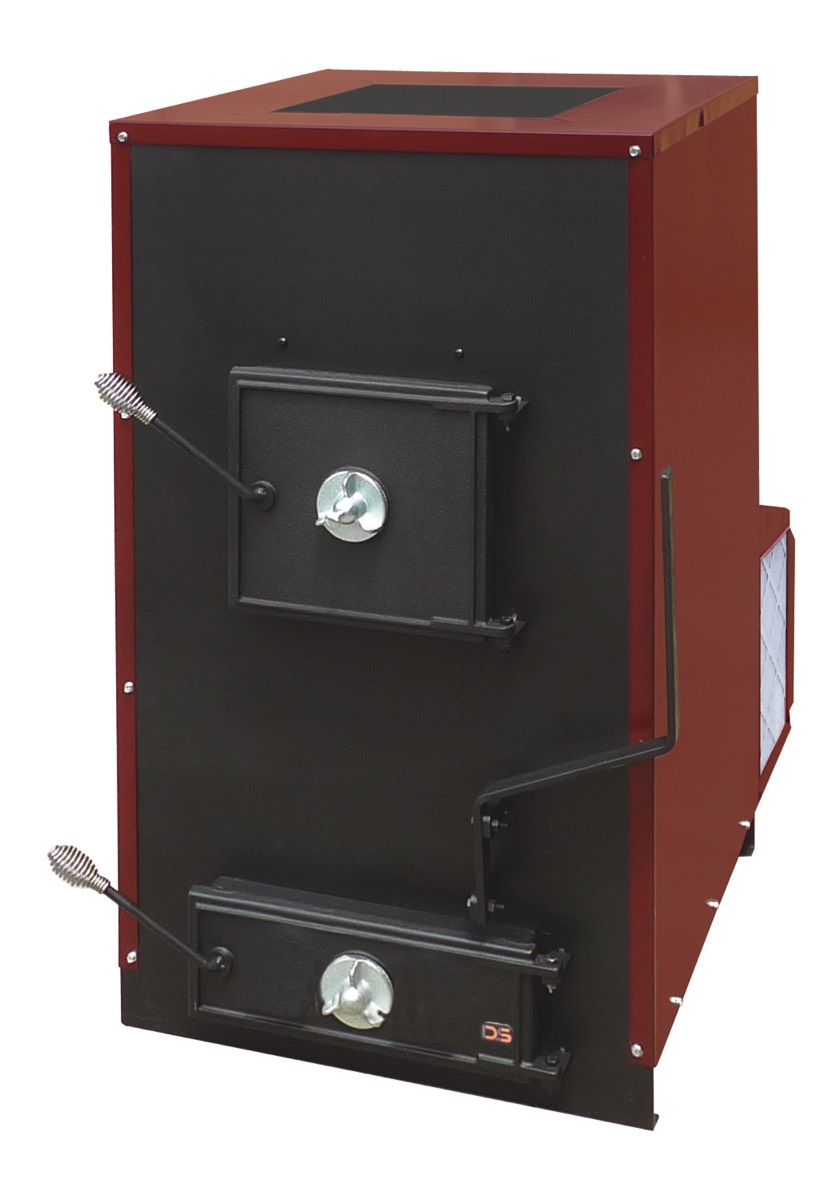

100 KozyKing
Our goal is to serve your needs with a very efficient clean burning furnace to heat your home. The Kozy-King’s secondary combustion provides maximum efficiency with less fuel. This U.L. listed wood and coal burning furnace is thermostat controlled for even temperature. The Kozy-King comes with a 3-speed blower and safety feature to prevent overheating. The DS Circulator rests inside the firebox and is insulated with a sheet metal jacket. You can use this unit independently or in conjunction with another furnace. The Kozy-King will heat your whole house, shop or greenhouse.
Specifications
100 KOZYKING
The complete specifications are listed below, and can help you understand this appliance's designed purpose and capability.
Heating Sq. Ft.
Efficiency
BTU
Firebox(WxD)
Volume
Log Size
Overall (WxDxH)
Depth w/filterbox
Load door (WxH)
Ash door (WxH)
Top exhaust
Rear exhaust
Exhaust center
Plenum
Blower CFM
Blower Speeds
U.L. tested
Weight
Insulated jacket
Warranty
1200-2000
85.1%
90,000
14” x 20”
3.5 cu. ft.
18”
27.5”x27”x47.75”
47"
12” x 11”
16.5” x 5.5”
N/A
6”
42.5"
18" x 18"
3-Speed
1100,1350,1650
Yes*
700 lbs.
Included
5-year limited
1-year electrical
Features
100 KOZYKING
A list of some of the great features of this appliance.
- Made in USA
- Hand Crafted
- Built Tough
- Built to Last
- Burns coal

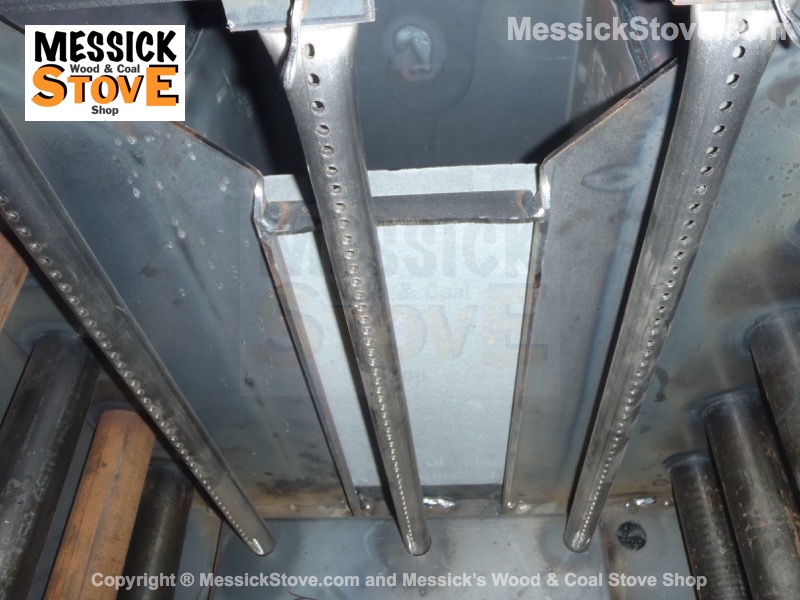

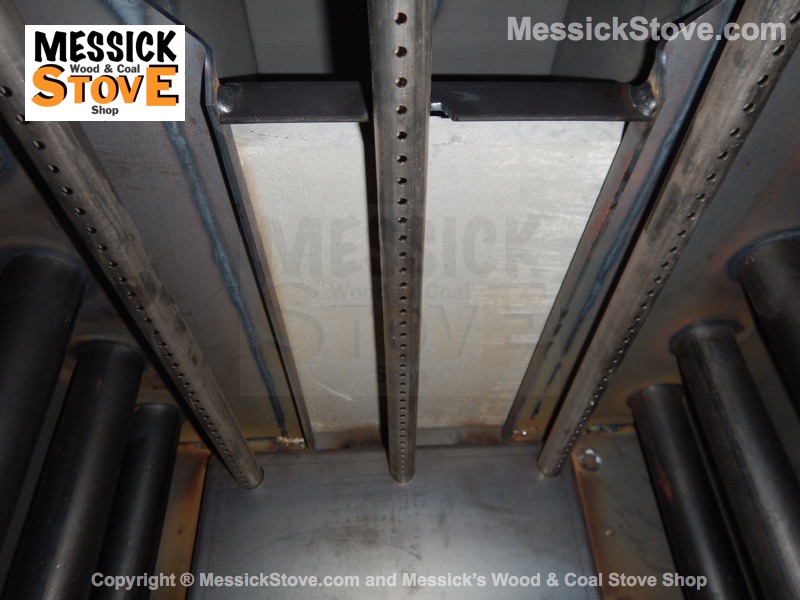

- Secondary combustion system
- Bi-metal draft regulator
- Built from heavy plate steel

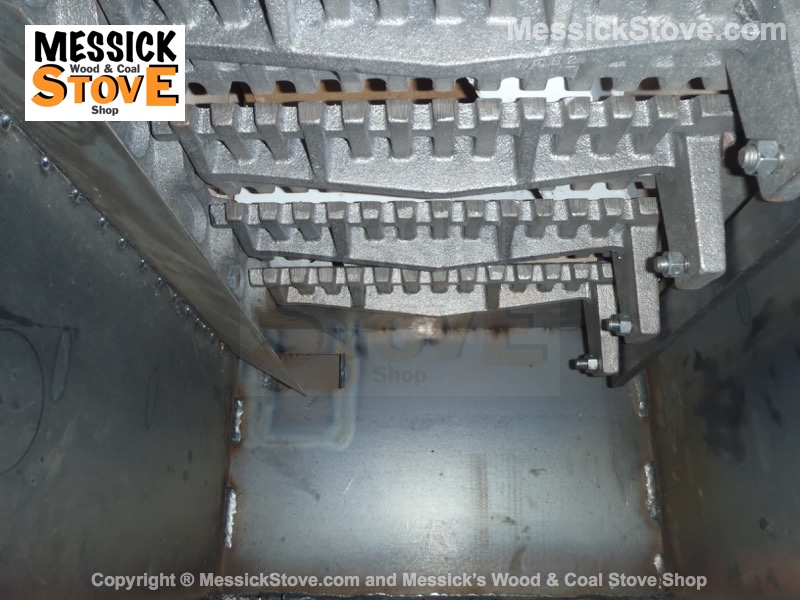

- Superior cast iron Shaker grates
- Heat exchanger with tubes
- Cast iron airtight doors
- Optional blower
- Large loading door
- 3-speed blower
- Thermostat controlled
- Easy Operation
- Easy Maintenance
- Priced Right
- 5 Year Warranty
- Safety control with fan limit switch
- Cast iron ceiling baffle
- Forced draft
- Insulated cabinet
- 80/20 combustion bypass
- Filter box left or right intake
- Domestic water option
- Large ash pan
- Exterior Shaker handles
- Minimal dust
Options
100 KOZYKING
- Domestic Hot Loop (3/4")
- Domestic Hot Loop (1")
Clearances From Combustibles
100 KOZYKING
This appliance has the following requires when installing.
Back
Front
Flue/Stove Pipe
Top of plenum
18”
48”
18”
2”
All units require a class “A” all fuel chimney installation that must conform to local and state codes. *Safety tested and labeled to U.L. Standards by Guardian Fire testing, to U.L. 391, ETLM78-1, CAN/CSA B-366,1

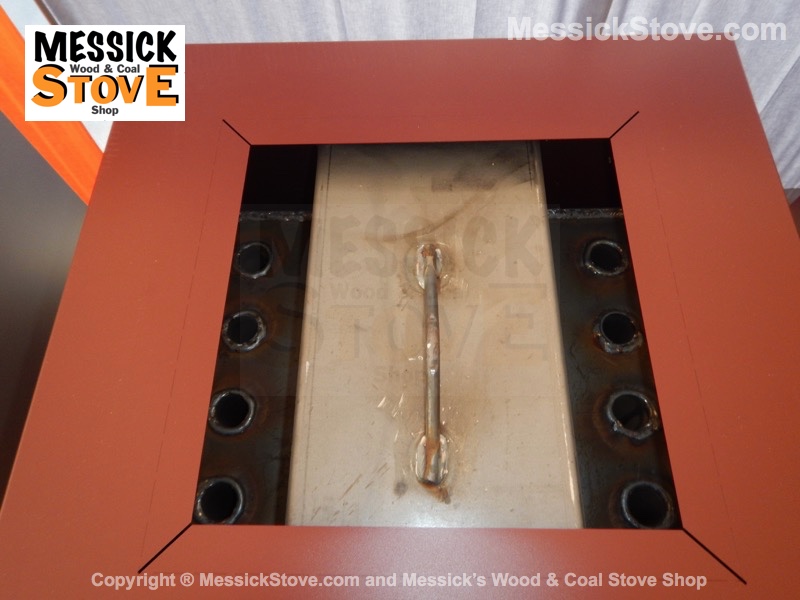

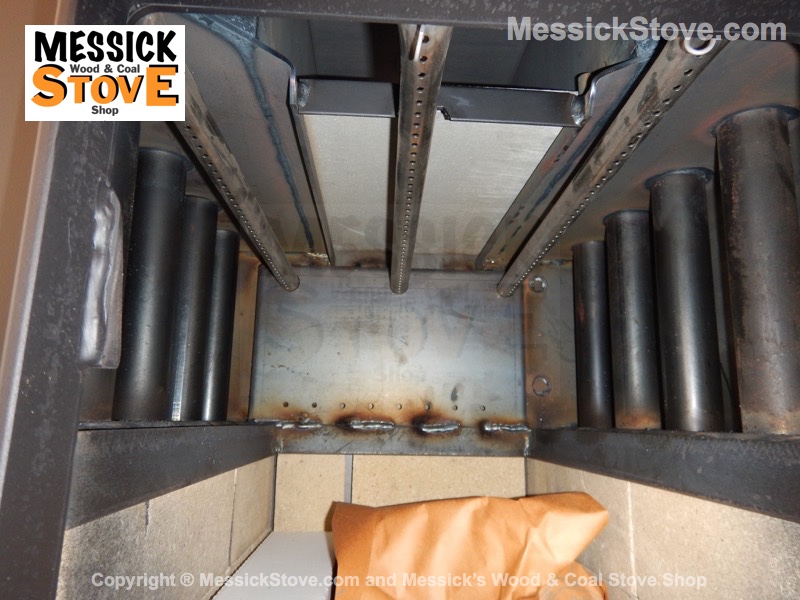

DS Circulator Tubes
100 KOZYKING

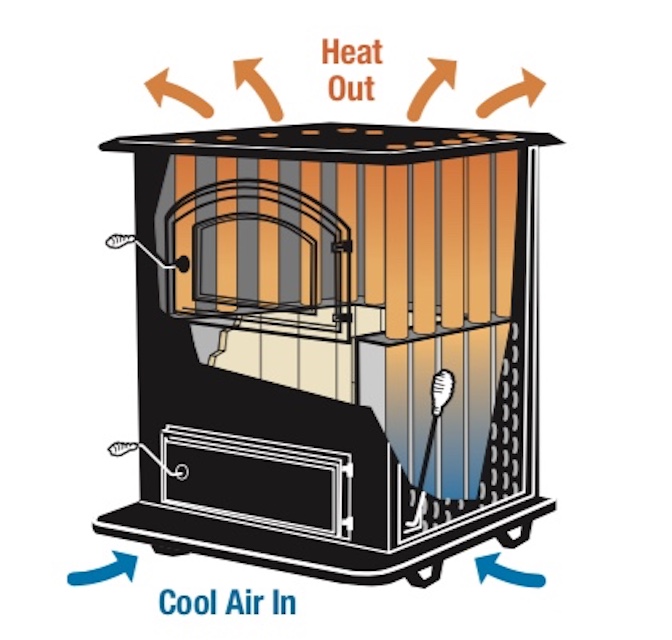

This stove uses DS Hot Air Circulator Heat Tubes, by circulating the air. The heat from the fuel and exhaust, heats these circulator tubes. The hot air rises out of the top of the tubes. When this happens, if creates a draw of air. The hot air leaving the top of the tubes has to be replaced. Cooler air that sits on the floor is now drawn up into the bottom of the tubes, making the air circulate. This is a continues process moving the air and heating the cooler air.
Circulates Air and Puts Out More Heat
100 KOZYKING

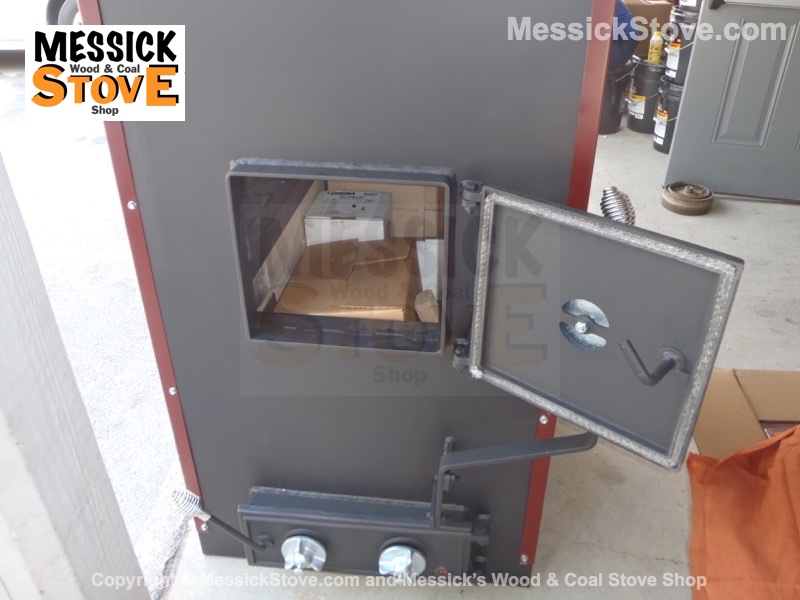

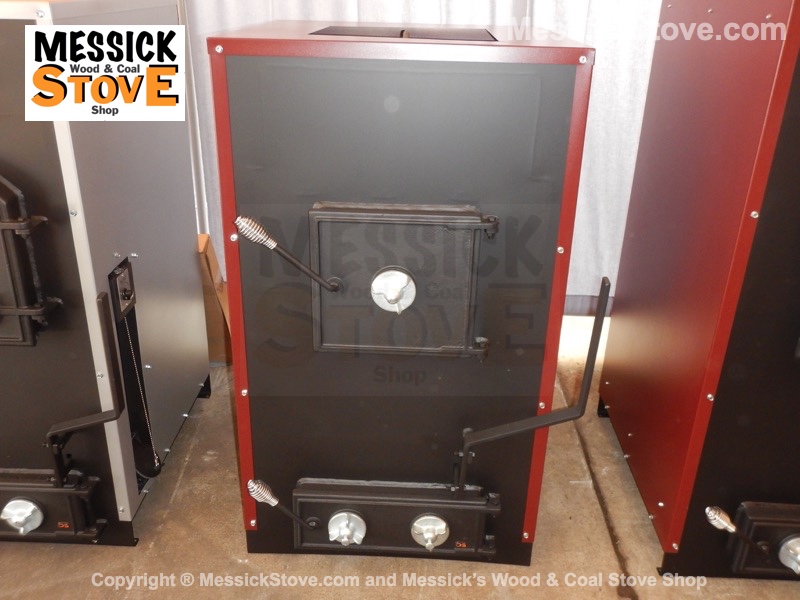

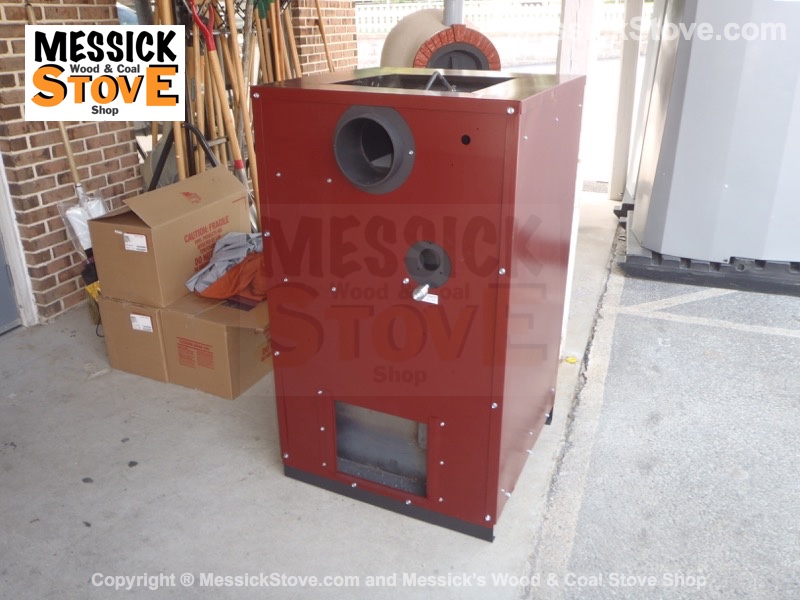

Photos
